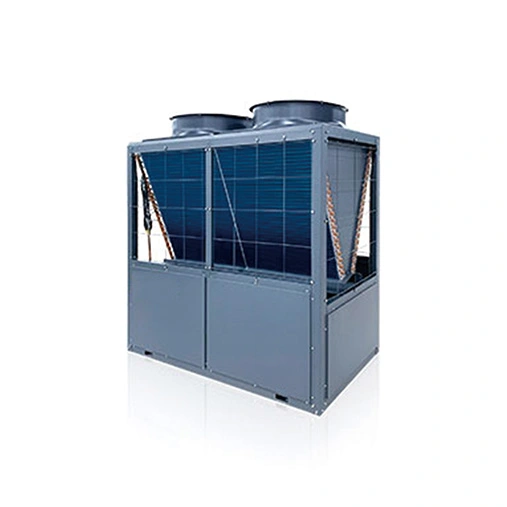

The AXEN Commercial Swimming Pool Heat Pump features a robust design and high capacity, delivering energy-efficient performance for reliable heating of large-scale pools, making it ideal for commercial use.
Host model | External model | 45KW | 55KW | 70KW | 110KW |
Internal model | KY-450N1/TBP-A | KY-550N1/TBP-A | KY-700N1/TBP-A | KY-1100N1/TBP-A | |
Air7℃/Water26℃ Humidity 70% | capacity(kW) | 6.3~23.4 | 8.4~28.8 | 10.2~38.4 | 12.2~55.8 |
power input(kW) | 1.21~6.47 | 1.64~8.22 | 1.96~11.13 | 2.3~15.9 | |
COP | 3.6~5.22 | 3.5~5.11 | 3.45~5.2 | 3.5~5.3 | |
Air15℃/Water26℃ Humidity 70% | capacity(kW) | 7.5~31.2 | 10.3~38.4 | 11.4~50.2 | 15.8~77.5 |
power input(kW) | 1.05~6.78 | 1.45~8.53 | 1.58~11.03 | 2.16~17.0 | |
COP | 4.6~7.2 | 4.5~7.1 | 4.55~7.2 | 4.56~7.3 | |
Air26℃/Water26℃ Humidity 80% | capacity(kW) | 11.2~45.0 | 13.7~55.0 | 17.5~70.0 | 27.5~110.0 |
power input(kW) | 0.8~7.44 | 0.99~9.17 | 1.28~11.96 | 1.96~18.03 | |
COP | 6.05~14.1 | 6.0~13.8 | 5.85~13.7 | 6.1~14.0 | |
Air35℃/Water28℃ Humidity 80% | capacity(kW) | 6.8~27.2 | 8.3 ~33.1 | 10.9~43.7 | 17.2~68.8 |
power input(kW) | 0.86~7.88 | 1.11~9.32 | 1.51~12.14 | 2.27~18.6 | |
EER | 3.45~7.5 | 3.55~7.48 | 3.6~7.42 | 3.7~7.57 | |
Advised Pool Volume | m³ | 140~200 | 200~250 | 240~300 | 300~480 |
power supply | V / Ph / Hz | 380-420/3N~/50 | |||
Fan speed | RPM | 400~800 | 750 | ||
max power input | kW | 9.85 | 11.65 | 15.2 | 23.25 |
max current | A | 17 | 20.1 | 26.2 | 40.1 |
water pipe in-out | inch | G1-1/2 | G2 | G2 | G2 |
Water Pressure | kpa | 35 | 38 | 40 | 45 |
water flow | m³/h | 12~18 | 16~24 | 20~30 | 30~45 |
Refrigerant volume | R410A | ||||
Operating air temperature | ℃ | -15~43 | |||
Min pressure/max pressure | Mpa | 1.5/4.15 | |||
package dimensions | LxWxH(mm) | 910*962*1080 | 1362*829**1730 | 1537*890*1730 | 2030*950*2100 |
unit dimensions | LxWxH(mm) | 901*920*1056 | 1290x757x1590 | 1459x810x1590 | 2014*919*1953 |
net weight | kg | 165 | 215 | 260 | 510 |
gross weight | kg | 188 | 245 | 290 | 550 |
noise at 1 m | dB(A) | 47.6~61.7 | 48.1~63.4 | 48.6~64.1 | 48.1~65.2 |
noise at 10m | dB(A) | 28.3~38.4 | 28.8~38.7 | 29.6~39.5 | 30.2~40.5 |
compressor brand | Rotary | Scroll | Scroll | Scroll | |
compressor type | GMCC | GMCC | GMCC | GMCC | |
water proof level | IPX4 |
Axen commerical series swimming pool heat pump offers products with COP as high as 6.36 (A27/W27).
You don’t have to worry about your energy bill any more.
Sturdy sheet metal coated with anti-corrosion power has been used to produce Axen on/off swimming pool heat pump cabinet. The robust cabinet can protect your heat pump through different tough weather and provide you longer time of use.

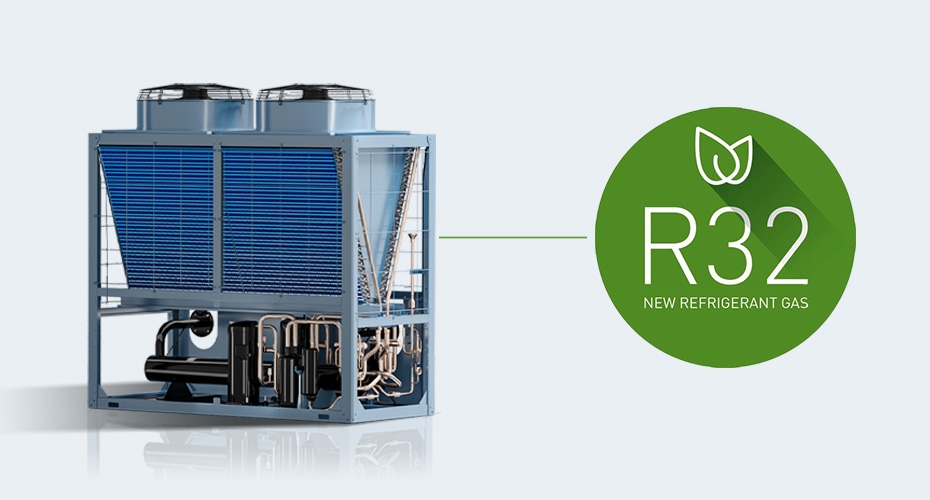

Environment-friendly refrigerant R32 is deployed in all Axen heat pump units. It has lower GWP (Global Warming Potential) 675 which has lower impact on mother earth. Meanwhile, R32 refrigerant has better energy performance.

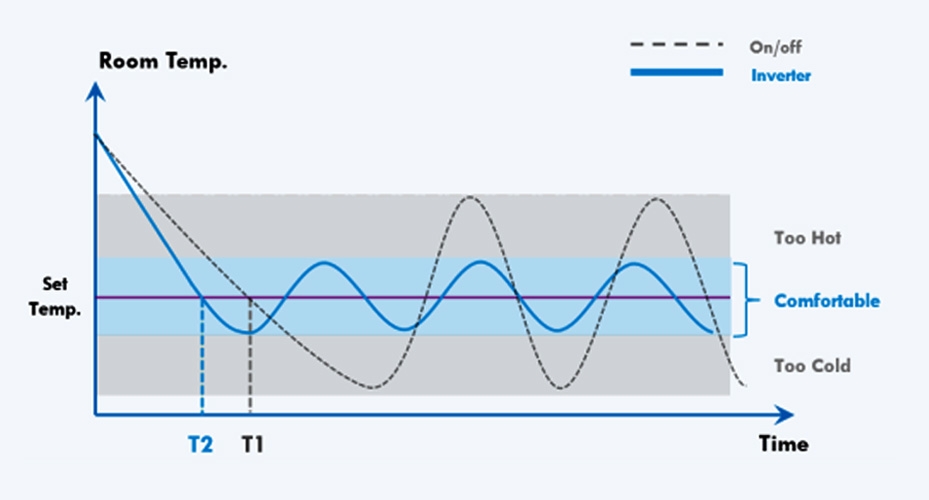

Inverter technology has been used in Axen WAVE series. Benefits of inverter include fast start-up, avoiding frequent start and stop, low noise and high energy efficiency. Axen also applies well-known brand components to build a more reliable inverter system.
