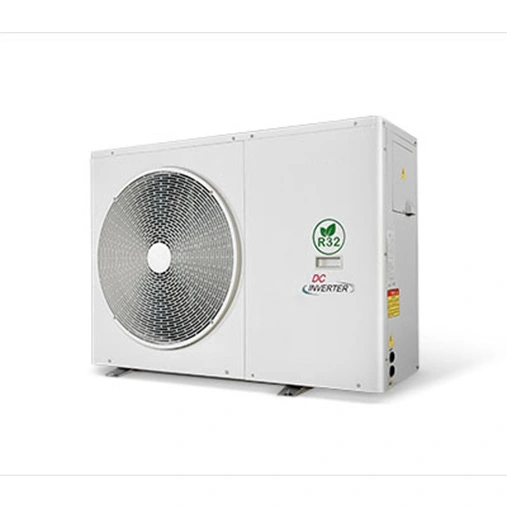

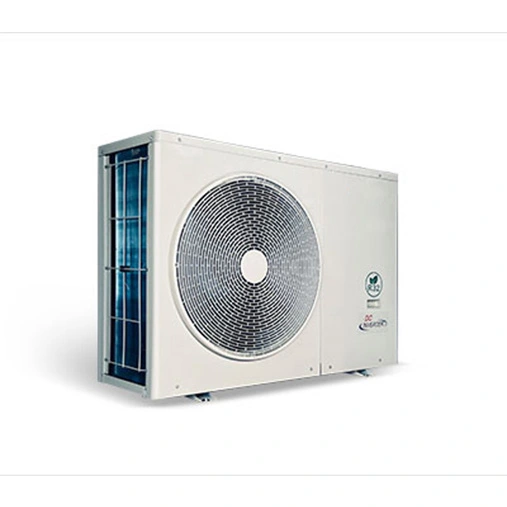

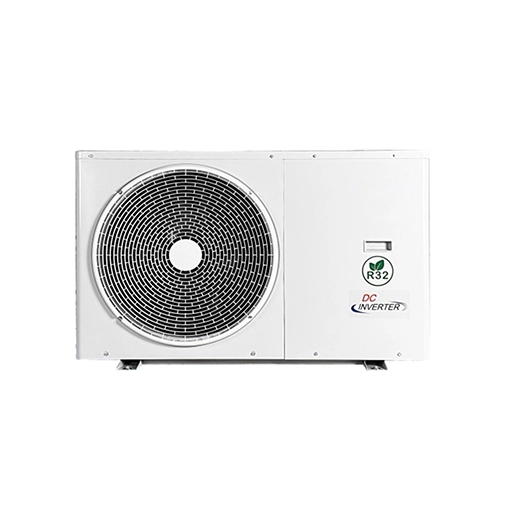

Model A Monobloc Air To Water Heat Pump

Name: Model A Monobloc Air To Water Heat Pump
Brand: GZ AXEN Heat Pump Technology CO.,LTD.

Model A Monobloc Air to Water Heat Pump: An efficient solution for heating, cooling, and hot water, utilizing eco-friendly R32 refrigerant. Its compact, integrated design ensures reliable performance and easy installation.

Contact AXEN +

Specifications of Model A Monobloc Air To Water Heat Pump

Model name			KS-40W/EN8BP	KS-60W/EN8BP	KS-80W/EN8BP	KS-100W/EN8BP	KS-120W/EN8BP	KS-140W/EN8BP	KS-160W/EN8BP	KS-100W/ENS8BP	KS-120W/ENS8BP	KS-140W/ENS8BP	KS-160W/ENS8BP
Power supply		V / Ph / H	220-240 / 1 / 50							380-415 / 3 / 50
Heating1	Capacity	kW	4.0	6.0	7.9	10.2	12.1	14.5	15.9	10.21	12.06	14.47	15.91
Heating1	COP		5.25	5.13	4.50	5.01	4.70	4.84	4.65	5.01	4.70	4.84	4.65
Heating2	Capacity	kW	4.2	6.0	8.3	10.2	12.1	14.5	15.9	10.20	12.10	14.50	15.90
Heating2	COP		3.77	3.70	3.18	3.65	3.60	3.72	3.43	3.65	3.60	3.72	3.43
Heating3	Capacity	kW	4.1	6.1	7.7	9.6	12.3	13.8	15.8	9.60	12.30	14.10	15.80
Heating3	COP		2.84	2.86	2.58	2.98	2.77	3.12	2.58	2.98	2.77	3.12	2.58
Cooling4	Capacity	kW	4.0	6.2	8.2	10.1	11.9	14.1	15.7	10.01	11.85	14.14	15.72
Cooling4	EER		5.19	4.91	4.65	4.14	4.36	4.56	3.90	4.14	4.36	4.56	3.90
Cooling5	Capacity	kW	4.3	6.3	7.6	8.8	11.6	14.3	16.0	8.78	11.58	14.30	16.00
Cooling5	EER		3.24	3.14	2.97	2.96	2.80	2.80	2.61	2.96	2.80	2.80	2.61
Seasonal space heating energy efficiency class	LWT at 35℃		A+++	A+++	A+++	A+++	A+++	A+++	A+++	A+++	A+++	A+++	A+++
Seasonal space heating energy efficiency class	LWT at 55℃		A++	A++	A++	A++	A++	A++	A++	A++	A++	A++	A++
Refrigerant	Type		R32	R32	R32	R32	R32	R32	R32	R32	R32	R32	R32
Refrigerant	Charged	kg	1.03	1.03	1.3	1.5	1.75	2.1	2.1	1.5	1.75	2.1	2.1
GWP value			675	675	675	675	675	675	675	675	675	675	675
Equivalent CO2		Ton	0.695	0.695	0.878	1.013	1.181	1.417	1.417	1.013	1.181	1.417	1.417
Compressor	Type		Twin rotary DC inverter
Compressor	Quantity		1	1	1	1	1	1	1	1	1	1	1
Fan motor	Motor type		BLDC
Fan motor	Quantity		1	1	1	1	1	1	1	1	1	1	1
Sound power level6		dB	56	58	59	60	64	65	68	60	64	65	68
Water resistance			IPX4
Water pipe connection	Inlet/Outlet	mm	Φ33	Φ33	Φ33	Φ33	Φ33	Φ33	Φ33	Φ33	Φ33	Φ33	Φ33
Operating temperature	Cooling	℃	-5 to 43
	Heating	℃	-25 to 35
	DHW	℃	-25 to 43
Note:
1. Outdoor air temperature 7℃ DB, 85% R.H; EWT 30℃, LWT 35℃
2. Outdoor air temperature 7℃ DB, 85% R.H; EWT 40℃, LWT 45℃
3. Outdoor air temperature 7℃ DB, 85% R.H; EWT 47℃, LWT 55℃
4. Outdoor air temperature 35℃ DB, 85% R.H; EWT 23℃, LWT 18℃
5. Outdoor air temperature 35℃ DB, 85% R.H; EWT 12℃, LWT 7℃
6. Test standard:EN12102-1

Details of Model A Monobloc Air To Water Heat Pump

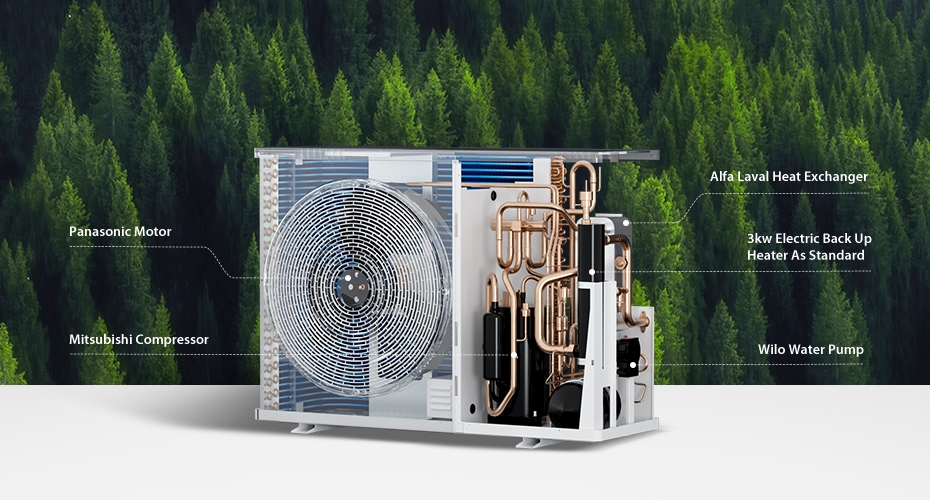

1. Leading brand components

Leading brand components like Mitsubishi compressor, Panasonic motor, Alfa Laval plate heat exchanger, SHIMGE/Wilo heat pump.

Leading brand components

2. High Efficiency SCOP at 35℃/55℃:A+++/A++,Maximum SCOP.5.0

AXEN heat pump uses R32 green gas and full DC inverter technology. With a top energy rating of A+++, the unit is currently the most energy efficient and can greatly reduce energy bills for customers.

High Efficiency SCOP at 35℃/55℃:A+++/A++,Maximum SCOP.5.0

3. Low noise mode

Extremely silent with a minimum sound power level 55dB.

Low noise mode

4. Eco-Conscious with R32 Refrigerant

R32 efficienctly works even in small volume compared to existing R410A refrigerant, which decreases the potential hazard of global warming. Furthermore, R32 refrigerant is easy to recycle Lower GWP and carbon emission(GWP:Global Warming Potential) reduce up to 75% of CO2 eg comparng with R410 A.

Eco-Conscious with R32 Refrigerant

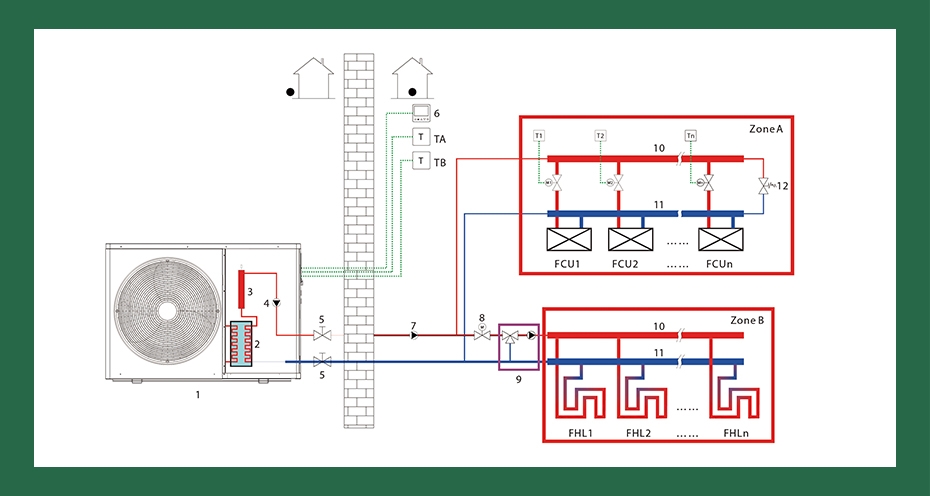

5. User Convenience-Two zones control

For different indoor terminal units, the design of this ATW heat pump leaving water temperature is different. The two zones control function is used to ensure different indoor terminal units working at its design temp. to enhance the comfort and save energy.

User Convenience-Two zones control
